Auto Switch & Mobile Auto

Features:

• Microcontroller based technology.

• Motor starts automatically as supply is ON in 1/3/5 minutes.

• Protection from unbalance voltage.

• Protects the motor from single phasing.

• Operates on low voltage (from 200 V)

• Useful for 3 Ph. 3 to 7.5 H.P. (D.O.L Starter) Openwell, Submersible, Monoblock pumpsets.

• Separate indications for Timer, OK & SPP.

• In phase reversal condition SPP LED Blinks.

• Auto Manual Facility.

• SNR/AS/NANO – SMPS Power supply. Other Features same as per AS/9001

Technical Specifications:

• Operating voltage – 220 to 460 VAC, 50Hz.

• SPP Trip time delay – 4 sec.

• Voltage Unbalance Setting – 35 volts phase to phase.

Introducing the Snr/as/9001 Microcontroller, designed for industrial applications. Made from high-quality silicon, this microcontroller operates at a voltage range of 220 to 460 VAC. With a fast SPP trip time delay in seconds and an I2C interface, it offers low power consumption for efficient performance.

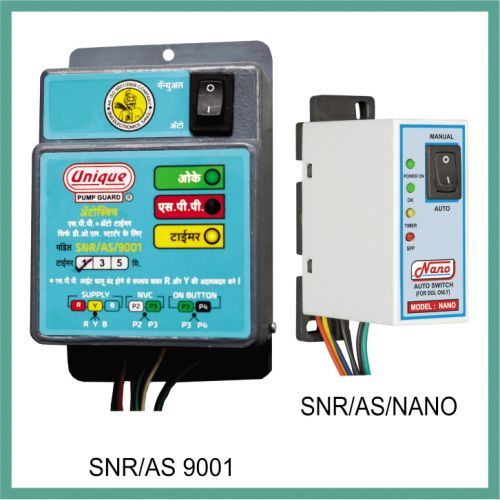

AUTOSWITCH (SNR/AS 9001)

Features:

• Microcontroller based technology.

• Motor starts automatically as supply is ON in 1/3/5 minutes.

• Protection from unbalance voltage.

• Protects the motor from single phasing.

• Operates on low voltage (from 200 V)

• Useful for 3 Ph. 3 to 30 H.P. Openwell, Submersible, Monoblock Pumpsets.

• Separate indications for Timer, OK & SPP.

• Auto / Manual Facility.

• In phase reversal condition SPP LED Blinks.

Technical Specifications:

• Operating voltage – 220 to 460 VAC, 50Hz.

• SPP Trip time delay – 4 sec.

• Voltage Unbalance Setting – 35 volts phase to phase.

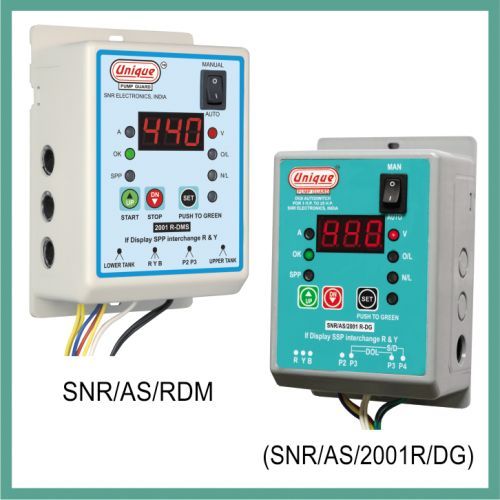

DIGITAL AUTOSWITCH (SNR/AS RDM) (SNR/AS/2001R/DG)

Features:

• Micro Controller Based Technology.

• Motor starts automatically after on delay time (settable ondelay time)

• LED display for all faults, current, voltage, protections.

• After Dry Run trip restart time settable from 1 min. to 180 mins.

• O/L. & D/R% settable.

• SPP/O/L./protection enable/disable facility

• Protection from voltage unbalance, Single Phasing & Dry Run (Automatic push button setting)

• Useful for 3Ph., 3HP to 20HP openwell monoblock submersible pumps.

• Overload current delay & dry run trip current shows in display.

• Auto bypass facility.

• Separate indicator for time, OK, SPP/O/L&D/R.

• In phase reversal condition SPP LED Blinks.

• Cyclic with enable & disable facility.

• Timer with memory can be changed once.

Technical Specifications:

• Operating voltage – 220 to 460 VAC

• Dry Run trip timing – 7 Sec.

• Overload trip time – 2 to 30 S (IDMT Dry run setting – 70% of full load current

• Overload setting – 130% of full load.

• Trip time delay – 4 sec.

• Voltage Unbalance Setting – 35 volts phase to phase.

• SPP Protection – current and voltage sensing.

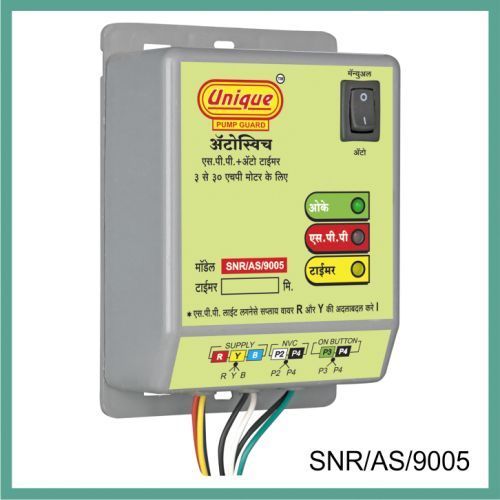

Features:

• Microcontroller based technology.

• Motor starts automatically as supply is ON in 1/3/5 minutes.

• Protection from unbalance voltage.

• Protects the motor from single phasing.

• Operates on low voltage (from 200 V)

• Useful for 3 Ph. 3 to 30 H.P. Openwell, Submersible, Monoblock Pumpsets.

• Separate indications for Timer, OK & SPP.

• Auto / Manual Facility.

• In phase reversal condition SPP LED Blinks.

Technical Specifications:

• As per AUTOSWITCH (SNR/AS 9001)

• Star to Delta Time Delay - 7 Sec.

POWER AUTOMATION PEOPLE

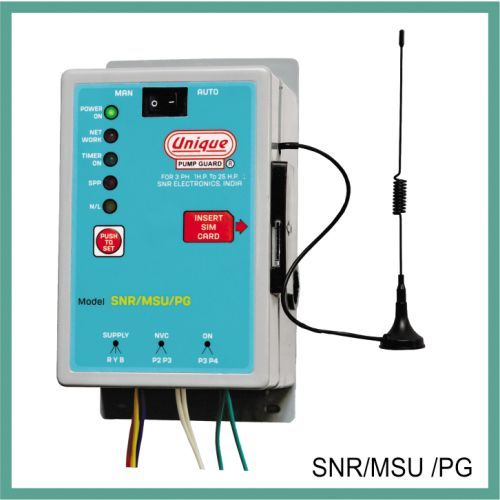

MOBILE START UNIT (SNR/MSU/PG)

Features:

• Microcontroller based technology.
• Useful for 1 Ph. & 3 Ph. to 30 H.P.
• Motor can be operated by mobile on calling or SMS from any destination automatically. (Mobile Network necessary)
• You will get Audio feedback or SMS feedback of each operation and protection.
• Mobile Auto can Operate from Specific Numbers (4 Nos.) which will be feed by customer for his convenience to avoid misuse of Mobile Auto.
• Protection from voltage unbalance, reverse phasing, single phasing, & Dryrun.
• In phase reversal condition SPP LED Blinks.
• Separate indicator for OK, SPP, N/L & Mobile ON
• You can direct insert Simcard to this unit.
• For details of voice feedback & other information please refer instruction manual with this unit.

Technical Specifications:

• Operating voltage – 220 to 460 VAC, 50 Hz.
• Dry run trip timing - 7 Sec.
• Dry run setting – 70% of full load current
• SPP Trip time delay - 4 sec.
• Star to Delta Time Delay – 7 Sec.
• Voltage Unbalance setting - 35 volts.

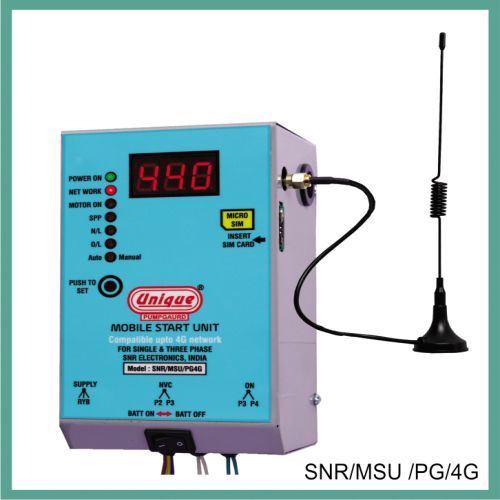

MOBILE START UNIT (SNR/MSU/PG/4G)\\n

Features:

• Microcontroller based technology.
• Useful for 1 Ph. & 3 Ph. to 30 H.P.
• Motor can be operated by mobile on calling or SMS from any destination automatically. (Mobile Network necessary)
• You will get Audio feedback or SMS feedback of each operation and protection.
• Mobile Auto can Operate from Specific Numbers (4 Nos.) which will be feed by customer for his convenience to avoid misuse of Mobile Auto.
• Protection from voltage unbalance, overload, High voltage, low voltage, reverse phasing, single phasing, & Dryrun.
• Separate indicator for OK, SPP, N/L & Mobile ON
• In phase reversal condition SPP LED Blinks.
• You can direct insert Simcard to this unit.
• For details of voice feedback & other information please refer instruction manual with this unit.
• Digital display for voltage & current.
• Over load Trip current & dry run Trip current shows on display with LED Indicator.

Technical Specifications:

• As per Model - SNR/MSU/PG
• Technical Specifications:
• As per Model - SNR/MSU/PG
