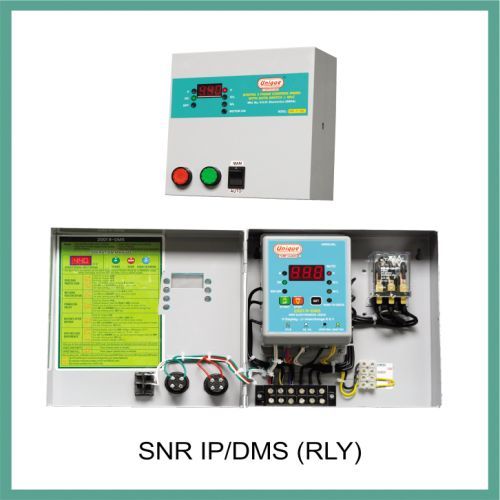

Snr/IP/dms (Rly) 3 PH. Control Panel

3 PH. CONTROL PANEL (UP TO 5 H.P.)\\n

(SNR/IP/DMS (RLY)

Features:

Micro Controller Based Technology

Motor Autostart Facility with settable on delay time.

Protection from voltage unbalance, single phasing, overload, Dryrun & also current sensing SPP, (Push button for Setting)

LED Display for voltage & ammeter & also indicator

40 A power relay for ON/OFF switching.

Compact size.

0/L percentage can be settable from 110% to 170%.

N/L % can be set from 90% to 50%

After Dry run trip restart relay facility available (with variable time set).

SPP/0/L protection enable/disable facility, as per DMA

Useful for 3 Ph. 1 to 5 H.P. Openwell, Submersible, Monoblock pumps.

Auto/Manual Facility.

Water level controller facility also available.

In reverse phase condition SPP LED Blinks and display shows rsp.

Technical Specification:

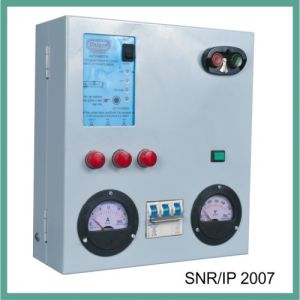

As per Model - IP2007
