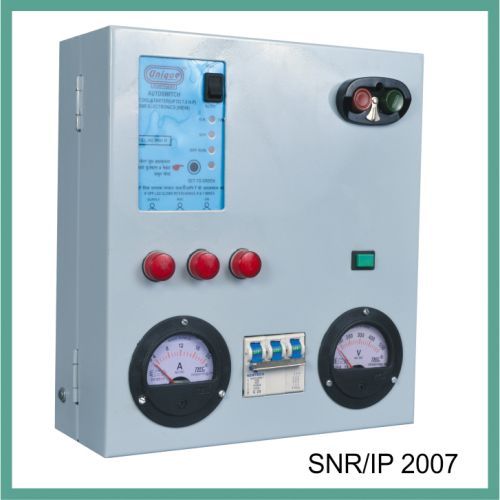

Snr/IP 2007 3 PH. Control Panel

3 PH. CONTROL PANEL\\n

(SNR/IP 2007)
Features:

Microcontroller based technology
Motor starts automatically after time delay 1/3/5 min
Protection from voltage & current unbalance, single phasing, overload & dry run. (auto push button setting)
RYB indication for each phase
Operates on low voltage (from 250 V)

Useful for 3 Ph. 1 to 6 H.P. Openwell, Submersible, Monoblock pumpsets.

Separate indicators for Timer, OK, SPP, Dry run & 0/L.
Auto / Manual Facility.
3 pole MCB for mains ON/OFF & Short circuit protection

Technical Specification:

Operating voltage: 220 to 460 VAC, 50 Hz.
Dry Run trip timing - 7 sec.
Overload Electromagnetic Relay.
Dry Run setting -
70% of full load current.
SPP Trip time delay - 4 sec.
Voltage Unbalance Set - 35 volts.
Voltage Sensing SPP.
