Single Ph Openwell & Sub Starters

Leading Manufacturers, Exporters, Wholesaler and Retailer of (Snr/owidmc/wlc/as) 1Ph Openwell Submersible Pump Starter, MCB Type Submersible Pump Starter Panel, Snr /mk/bch. 2Ph. Submersible Pump Starter, SNR/EP/2007/DMC Submersible Pump Starter, SNR/EP2007 Submersible Pump Starter, Snr/MCB/DG Submersible Pump Starter and SNR/MK/BCH/DG/AS-3 & 5 Submersible Pump Starter from Sangli.

Business Type Manufacturer, Exporter, Supplier
Type Submersible Pump Starter
Technology Microcontroller Based
Suitable For Openwell Submersible Pumps
Available For Pump Range 0.5 To 2 H.P.
Display Digital Ammeter & Voltage Indication
Special Features After Dryrun Restart Timer (Settable),Dryrun Overload Protection (Settable),2 Tank WLC Facility,Auto/Manual Facility

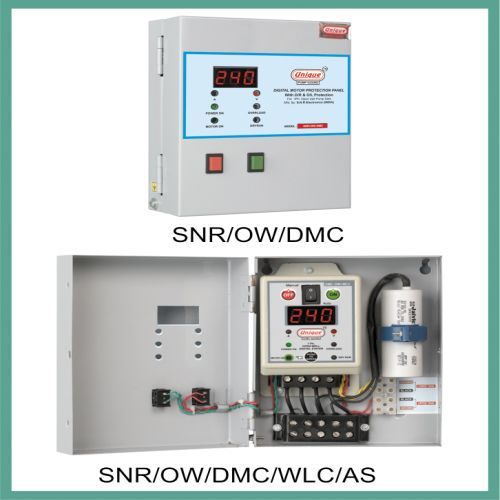

1 PH. OPENWELL STARTER WITH PROTECTION + WLC + AUTOSTART

(SNR/OW/DMC)
(SNR/OW/DMC/WLC/AS)

Features

  • Microcontroller based technology

  • Suitable for Openwell Sub. Pumps

  • Available for 0.5 to 2 H.P. Pumps

  • Digital Ammeter & Voltage indication

  • After Dryrun Restart Timer (Settable)

  • Dryrun overload % settable

  • 2 Tank WLC Facility (In WLC/AS)

  • Auto/Manual Facility

Technical Specifications



  • Operating Voltage: 160 V to 270 VAC

  • Overload Trip Time – 2S to 30S

  • Dry Run Trip Time – 7S

  • Dry run setting – 80% of full load (settable)

  • Overload setting – 130% of full load

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Size Multisizes
Model SNR/MCB
Type Starter Panel
Application Submersible Pumps
Suitable Pump Capacity 0.5 To 2 H.P.
Protection MCB Overload
Additional Features Separate Analog Meters For Voltage & Current

Click to view more

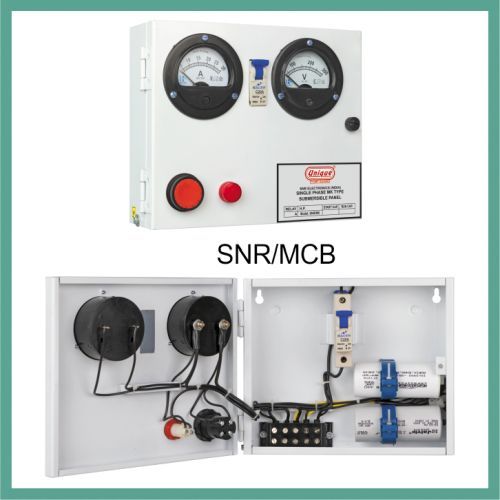

1 PH. SUBMERSIBLE MCB STARTER

(SNR/MCB)

Features



  • Suitable for Submersible Pumps

  • Available for 0.5 to 2 H.P. Pumps

  • MCB Overload Protection

  • Separate analog meters for voltage & current

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Technology Micro Controller Based
Suitable For 2 Phase Submersible Pumps Up To 7.5 HP
Auto Start Yes, With Capacitor Cut Facility
Overload Trip Time IDMT
Dryrun Trip Time 10 Seconds
Voltage Options High And Low Voltage Optional

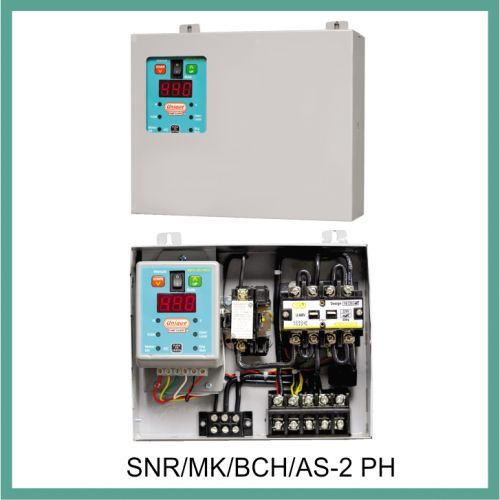

2 PH. MK/BCH TYPE STARTER WITH AUTOSTART UPTO 7.5 HP

(SNR/MK/BCH/AS-2 PH)

Features



  • Micro Controller Based Technology

  • Suitable for 2Ph. upto 7.5 HP Sub. Pumps

  • Voltage & current shows & fault shows on LED Display

  • Auto Start cap. cut facility

  • Overload trip time IDMT

  • Dryrun trip time 10 Sec.

  • High Voltage & Low Voltage Optional

  • 25 A- 4 Pole contactor used to isolate both phase

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Type Submersible Pump Starter
Country of Origin India
Phase Single
Frequency 50 Hz
Application Industrial, Control Panel For Single-phase Submersible Pumps
Features Micro Controller Based Technology,Suitable For 1 Ph. Submersible Pumps,Available For 0.5 H.P. To 2 H.P. Sub Pumps,LED Display For Each Protection & Facility,Auto Set As Per Motor Current,Voltage & Current Shows Continuously On LED Display,O/L & D/R % Sett
Power Source Electric

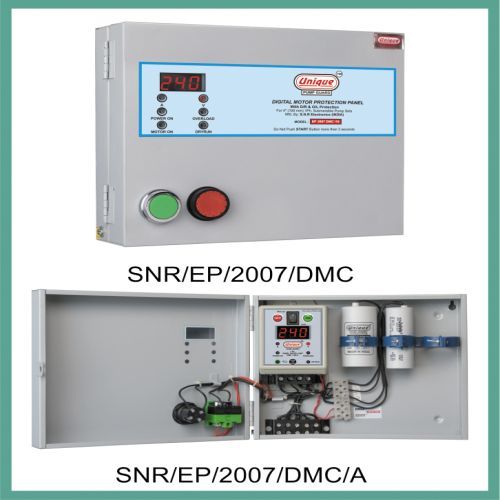

1 PH. SUB CONTROL PANEL (DMC) FULL AUTOMATIC\\n

Features:

  • Micro Controller Based Technology
  • Suitable for 1 Ph. Submersible Pumps.
  • Available for 0.5 H.P. to 2 H.P. Sub Pumps
  • LED display for each protection & facility
  • Auto set as per motor current (as per HP)
  • Voltage & current shows continuously on LED display one by one
  • O/L & D/R % Settable
  • After D/R Restart Settable (1 min. to 180 min.)
  • Water level Controller facility available for upper tank in auto start model.
  • (SNR/EP/2007/DMC/A) – On & Off time settable (Cyclic)
  • SNR/EP/2007/DMC – Off time settable (1 min. to 255 min.)
  • Auto Start after power came back (auto delay timer)



Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Type Submersible Pump Starter
Country of Origin India
Phase Single
Application Industrial, Suitable For Submersible Pumps
Features Microcontroller Based Technology,No Volt Release (Auto OFF On Failure Of Supply),Protection From O/L & Dryrun,Separate Indicators & Voltmeter / Ammeter,Automatic Push Button O/L And N/L Setting,Motor Starts Automatic After Supply Is ON In Auto Start Model
Technical Specifications 100/120, 120/150MFD,25/36/50 MFD,80% Of Full Load (settable),130% Of Full Load
Power Source Electric

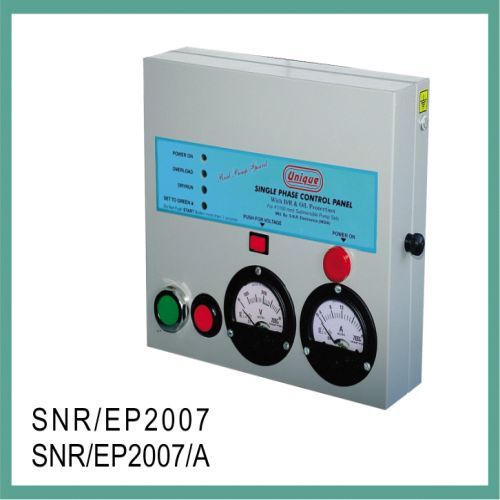

1 PH. SUBMERSIBLE STARTER\\n

(SNR/EP2007, SNR/EP2007 A)

Features

  • Microcontroller-based technology.
  • Suitable for Submersible Pumps.
  • Available for 0.5 to 2 H.P. Pumps
  • No Volt Release.
  • (Auto OFF on failure of supply)
  • Protection from O/L & Dryrun.
  • Separate indicators & Voltmeter / Ammeter
  • Automatic push button O/L and N/L setting
  • Motor Starts Automatic after supply is ON in Auto start model.



Technical Specifications

  • Start Capacitor: 100/120, 120/150MFD.
  • Run Capacitor: 25/36/50 MFD.
  • Dry run setting: 80% of full load (settable)
  • Overload setting: 130% of full load



Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Type Submersible Pump Starter
Country of Origin India
Application Industrial, Suitable For Submersible Pumps,0.5 To 2 H.P. Pumps
Material Mild Steel
Color Grey
Rated Power Electric
Features MCB Overload Protection, Digital Voltage & Current Display
Condition New

Click to view more

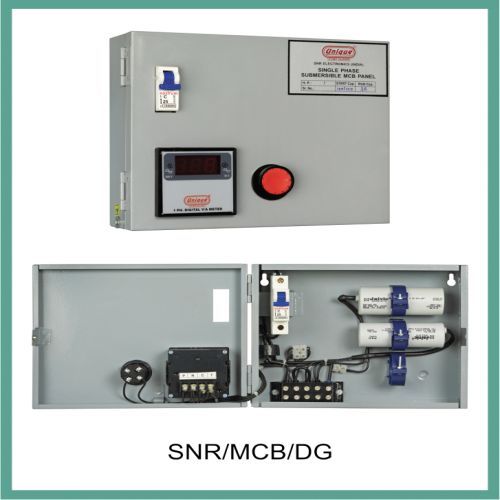

1 PH. SUBMERSIBLE MCB STARTER\\n

(SNR/MCB/DG)



Features

  • Suitable for Submersible Pumps
  • Available for 0.5 to 2 H.P. Pumps
  • MCB Overload Protection
  • Digital Voltage & Current Display
Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Type Submersible Pump Starter
Country of Origin India
Application Industrial, Suitable For 3 HP To 5 HP 1Ph. Submersible Pumps
Power Source Electrical
Material MS With Powder Coated Cabinet
Color Gray
Features Micro Controller Based Technology,LED Display For Each Protection & Facility,Voltage & Current Shows Continuously On LED Display,Standard Make Capacitor For As Per HP,Used 40 A Contactor Or Power Relay 63 A For Switching Operation,ISI Fireproof Cable Wiri
Additional Info Heavy Duty Submersible Pump Starter With Advanced Features And Customizable Settings.

Click to view more

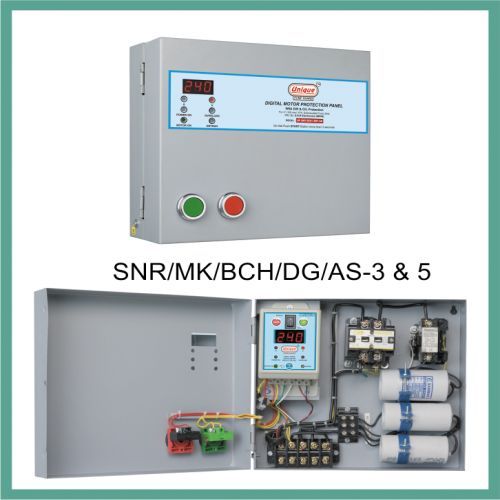

SNR/MK/BCH/DG/AS-3 & 5 H.P.


Features:

  • Micro Controller Based Technology.
  • Suitable for newly launched 3 HP to 5 HP 1Ph. Sub. Pumps
  • LED display for each protection & facility.
  • Voltage & current shows continuously on LED display one by one.
  • Standard make capacitor for as per HP
  • Used 40 A contactor or power relay 63 A for switching operation.
  • ISI fireproof cable wiring for panel.
  • Heavy MS with powder coated cabinet.
  • Autostart with on delay timer & also WLC facility available on request.
  • O/L. & D/R protection for pumps.
  • O/L. & D/R % settable as per requirement.
  • Technical setting & any additional change can be done as per requirement.







Read More...


Request to Call
